DENALI Electronics

DENALI DialDim™ Lighting Controller – Universal

5.0/51 REVIEWS

Controller for managing motorcycle lighting and power accessories.

$ 8,217.00 MXN

Shipping is calculated at checkout.

ASK US ON WHATSAPP ↗︎

Shipping and delivery times

Express shipping: estimated delivery in 1 to 3 business days after dispatch.

Ground shipping: estimated delivery in 3 to 5 business days after dispatch.

Orders are usually prepared in 1 to 2 business days. Available shipping options, costs and promotions are calculated at checkout based on destination, weight and order total.

Free shipping within Mexico is available on orders of at least $3,190 MXN. Availability and the final rate are confirmed at checkout based on your postal code and the weight of your order.

Store pickup

Select Store pickup at checkout. Wait for confirmation that your order is ready before coming to the store.

CDMX
C. Dr. José María Vértiz 1174, Ciudad de México. View store

GDL
Av. Patria 2945, Colli Urbano, 45070 Zapopan, Jalisco. View map

The availability shown is for the selected variant and may change while you complete your purchase.

Exchanges and returns

You have 7 calendar days after delivery to request an exchange or return.

The product must retain its tags, accessories and packaging and be in suitable condition. Shipping costs and the outcome depend on the type of request.

Have your order number ready and contact us on WhatsApp or at 55 8717 6041.

Read the full exchanges and returns policy.

PRODUCT DETAILS

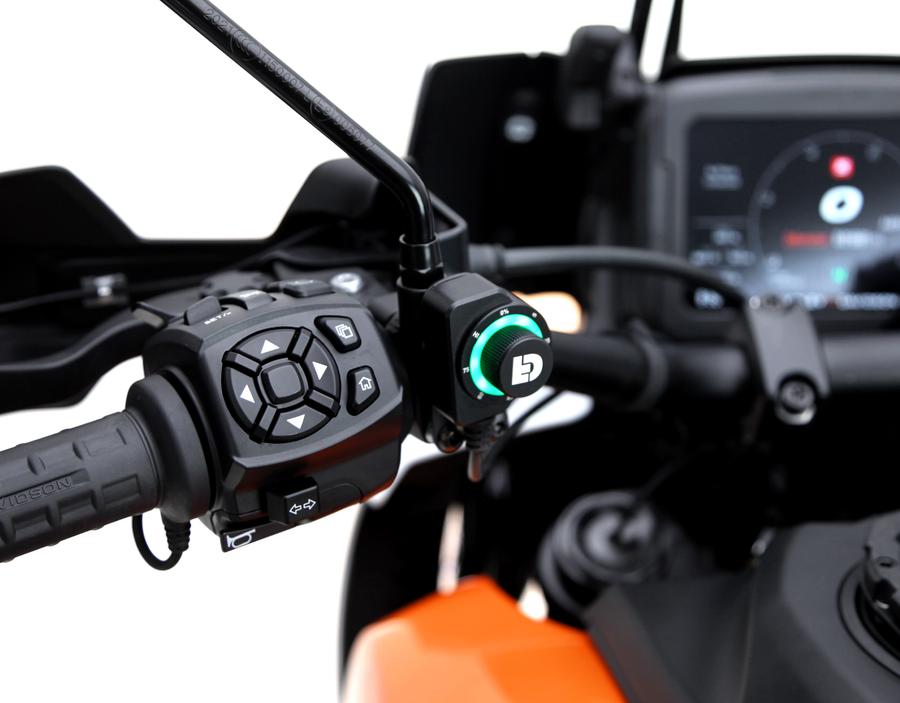

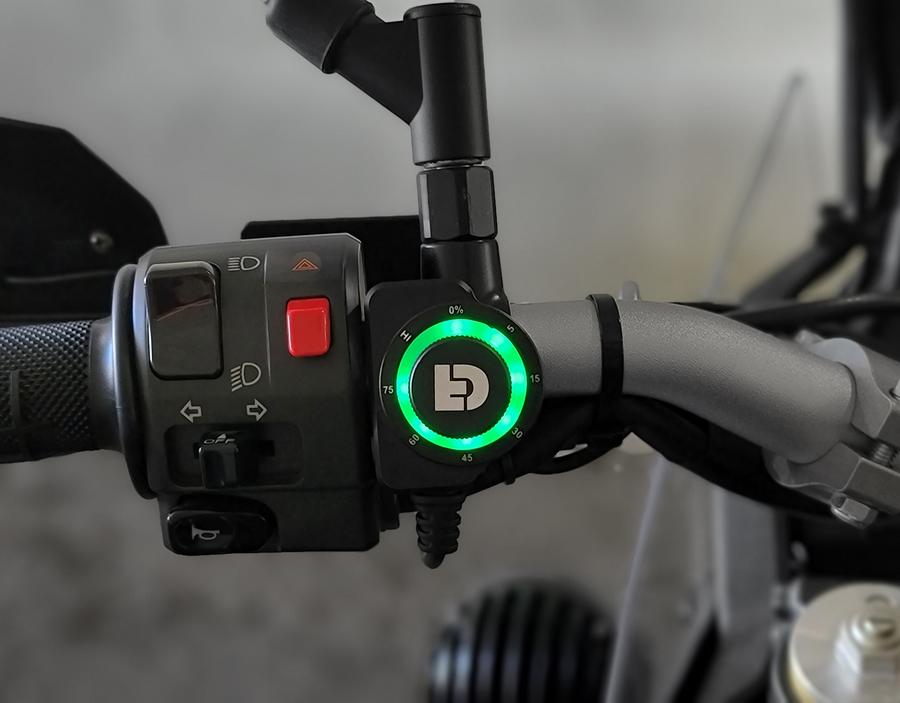

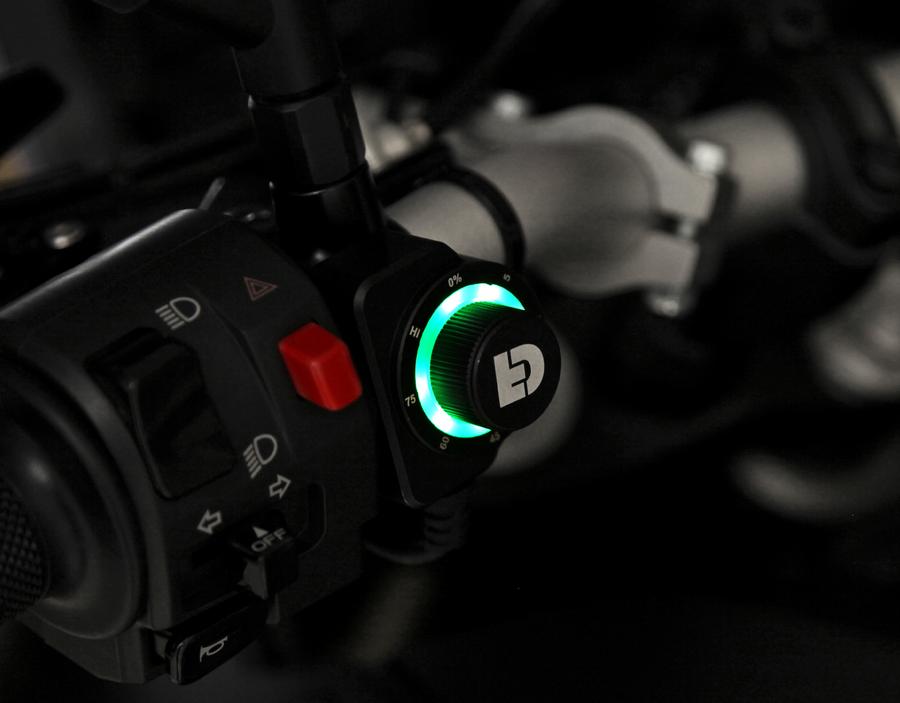

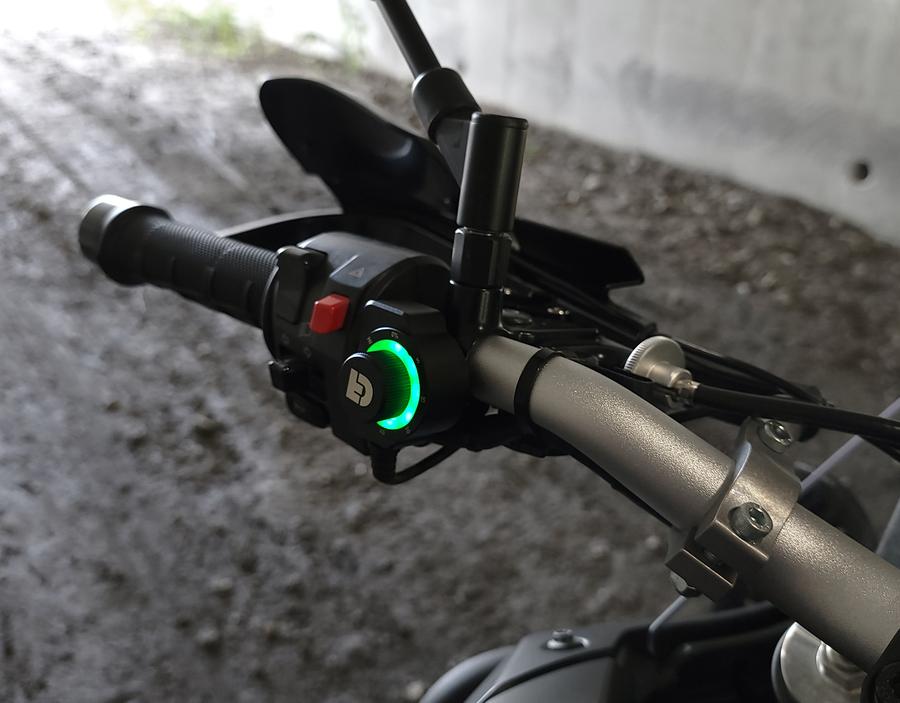

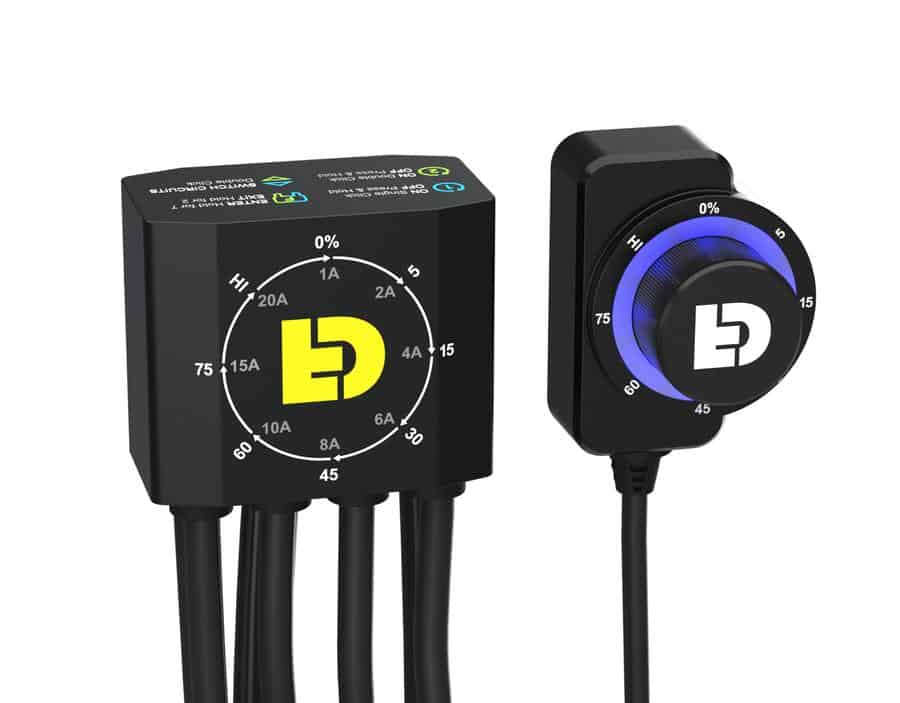

Our innovative DialDim™ lighting controller features a multi-color halo dimmer switch that allows you to independently turn on/off and adjust the brightness of two sets of auxiliary lights from a single, consolidated wiring harness. The LED halo display shows its exact configuration and enables effortless dimming on the go. The blue halo controls one set of lights, while the green halo controls the other; simply double-click to switch between the two circuits.

Description

The controller also features high beam, turn signal, and horn inputs to unlock smart flash functions. These functions can, for example, disable auxiliary lights when the turn signal is activated, turn the auxiliary lights on as a turn signal, or activate the lights when the horn is sounded.

More features, more feedback!
Our patent-pending multi-color dimming switch can do much more than simply turn lights on and off and adjust their brightness. To begin with, it displays the precise intensity of both lights, so you’ll never have to guess whether your lights are on or what level they're set to.

Thanks to the electronic fuse circuits, the halo switch can also display and allow you to select the fuse values for each circuit. And if a fuse blows, the LED halo will turn red, providing real-time feedback and allowing you to reset the fuse.

Finally, but no less importantly, the switch’s halo serves as a battery monitor with a low-voltage cutoff function. Our industry-leading design will flash in different colors during startup to display the battery status, and will automatically turn off the auxiliary lights if the battery voltage drops below 10.8 volts.

Features

Two fully independent light circuits
Eight intensity levels per circuit (5%, 15%, 30%, 45%, 60%, 75%, 100%)
Eight electronic fuse settings (1A, 2A, 4A, 6A, 8A, 10A, 15A, 20A)
Five function input wires (ignition, high beam, horn, left turn, right turn)
20 A max. per circuit (30 A max. combined)
Operating voltage: 12 VDC
ON/OFF and dimming: independently control two sets of lights and their intensity with the unique DialDim™ switch. The blue halo controls light set one and the green halo controls light set two. Double-click to switch between circuits.
High/low synchronization: auxiliary lights automatically switch between the selected dimming setting and full intensity using the factory high-beam switch. Connect the blue input wire to your vehicle's high-beam circuit to enable this function.
Stealth mode: a smart 0% dimming setting keeps the lights "off" during normal riding, but switches them to 100% intensity with your vehicle's high-beam switch. In this mode, lights also respond to turn-signal and horn inputs, but remain off when no inputs are detected.
Cancel with turn signal: when enabled, the main lights (blue circuit 1) switch off in sync with your signal to avoid overpowering the factory turn signal. Connect the yellow and orange input wires to your vehicle's turn-signal circuit to enable this function.
Flash as turn signal: when enabled, amber visibility lights (green circuit 2) flash in sync with the factory turn signals. Connect the yellow and orange input wires to your vehicle's turn-signal circuit to enable this function.
Strobe with horn: when enabled, auxiliary lights on both circuits strobe at 4Hz when the horn sounds. Connect the green input wire to your vehicle's horn circuit to enable this function.
Electronically fused circuits: both light circuits have electronic fuses configurable directly from the switch. The halo turns red when a fused circuit trips. Voltage display indicator: when starting the vehicle, the switch halo flashes green to indicate healthy battery voltage, or red for battery voltage below 11.8 volts. Low-voltage cutoff: if battery voltage falls below 10.8v, the lights will not turn on, helping prevent you from being stranded. The switch halo flashes 4 red LEDs to indicate low voltage.

What's included
